Toolbar options for the view mode

1. Allow Saving - will show the save toolbar button in the view mode
2. Allow Dimension - will show Dimension dropdown in the view mode
3. Allow Measure - will show Measure dropdown in the view mode

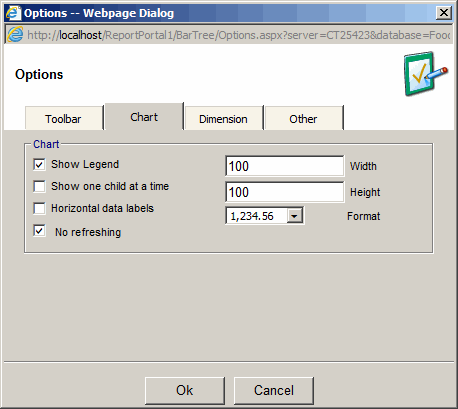

1. Show Legend - show the legend in the view mode
2. Show one child at a time - when clicking on a bar, show chart for only one bar and hide the remaining child charts
3. Horizontal data labels - for bar labels not to show text vertically
4. Width - width of the bar in pixels
5. Height - Height of the bar chart in pixels
6. Format - number formatting
7. No Refreshing - refresh report date when the report is opened

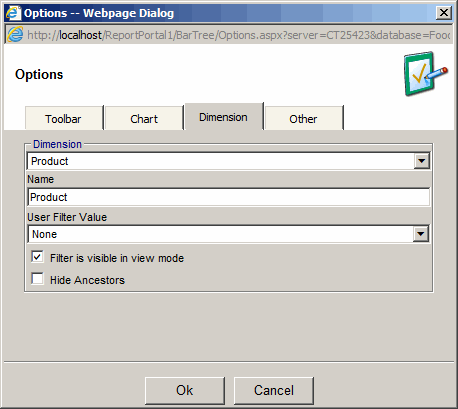

1. Dimension - filter dimension to be used
2. Name - alternative name for the dimension
3. User Filter Value - User Filter Value to be used by the dimension
4. Filter is visible in view mode - Uncheck to hide the filter in view mode
5. Hide Ancestors - Check to hide parent members of the filter in view mode

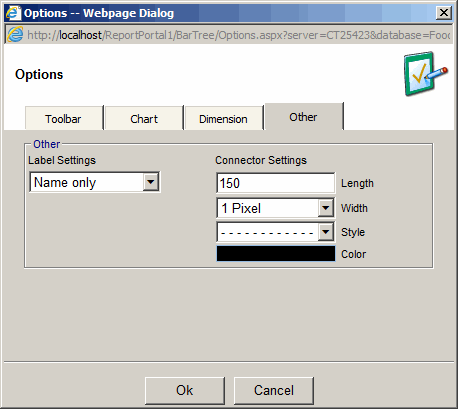

Label Settings:

1. No Labels - Text and number are not visible
2. Name Only - Number is not visible
3. Name and Number - Name and Number are visible

Connection Settings:

1. Length - length of the connector line.
2. Width - pixel width of the connector line.
3. Style - Dash, Dot and combination.
4. Color - color of the connector line.
